Free Shipping 3pcs SDI PTZ Camera 10X Zoom Live Streaming Camera for Church Business Meeting and 1PCS PTZ Camera Controller
Description
Features

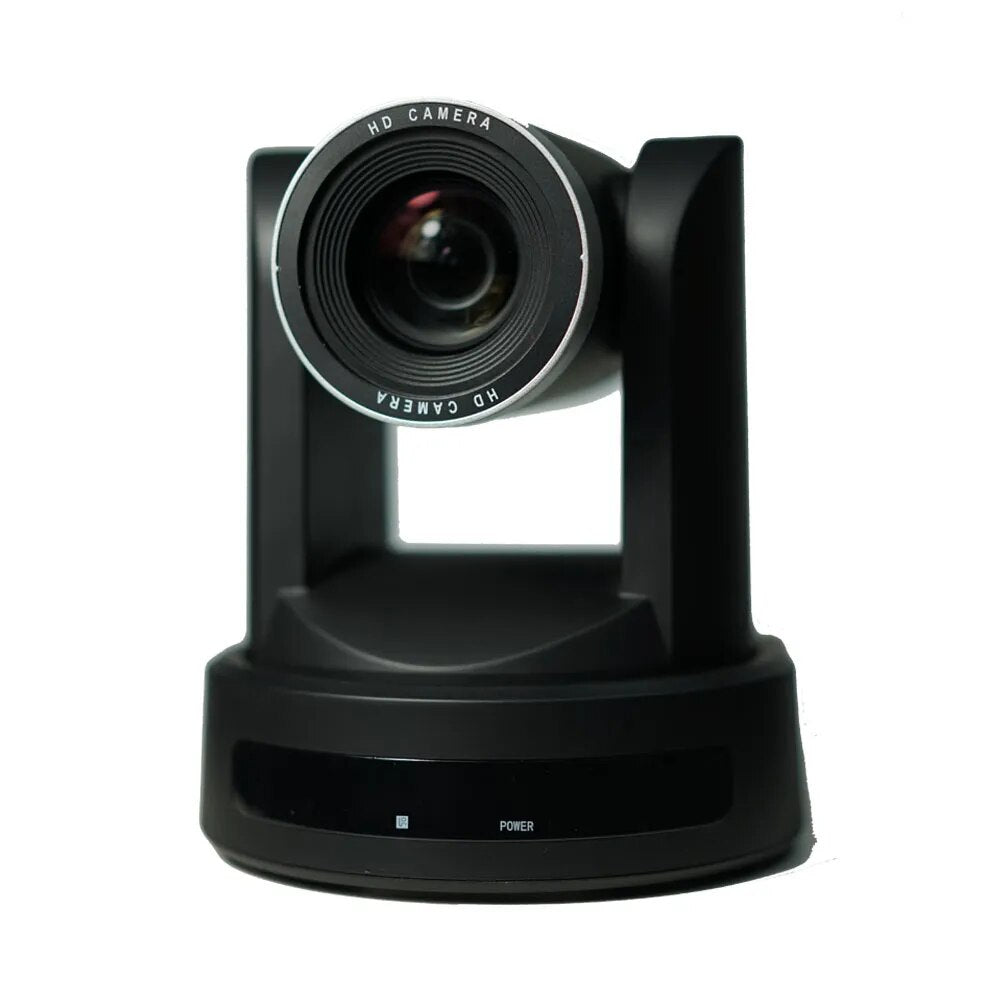

●Precise positioning, smooth and quiet PTZ control
The operation is very quiet, smooth and smooth, and it can move to the designated position precisely and quickly, and take a wide range of shooting.
●True FULL HD high-definition images
Using a 1/2.8-inch high-quality HDCMOS sensor with 2.1 million effective pixels, it can achieve 1920x1080 ultra-high-resolution high-quality images. The output frame rate can be up to 60/50 frames per second. While ensuring high-definition, the focus is on meeting the demand for picture fluency.
●Low noise and high signal-to-noise ratio
2D and 3D noise reduction algorithms based on motion estimation are applied, and a new generation of low-noise sensors are used to effectively reduce noise.
●10x optical zoom
Fast, accurate and stable auto-focus lens, up to 10x optical zoom.
●USB3.0 full HD multi-format video output

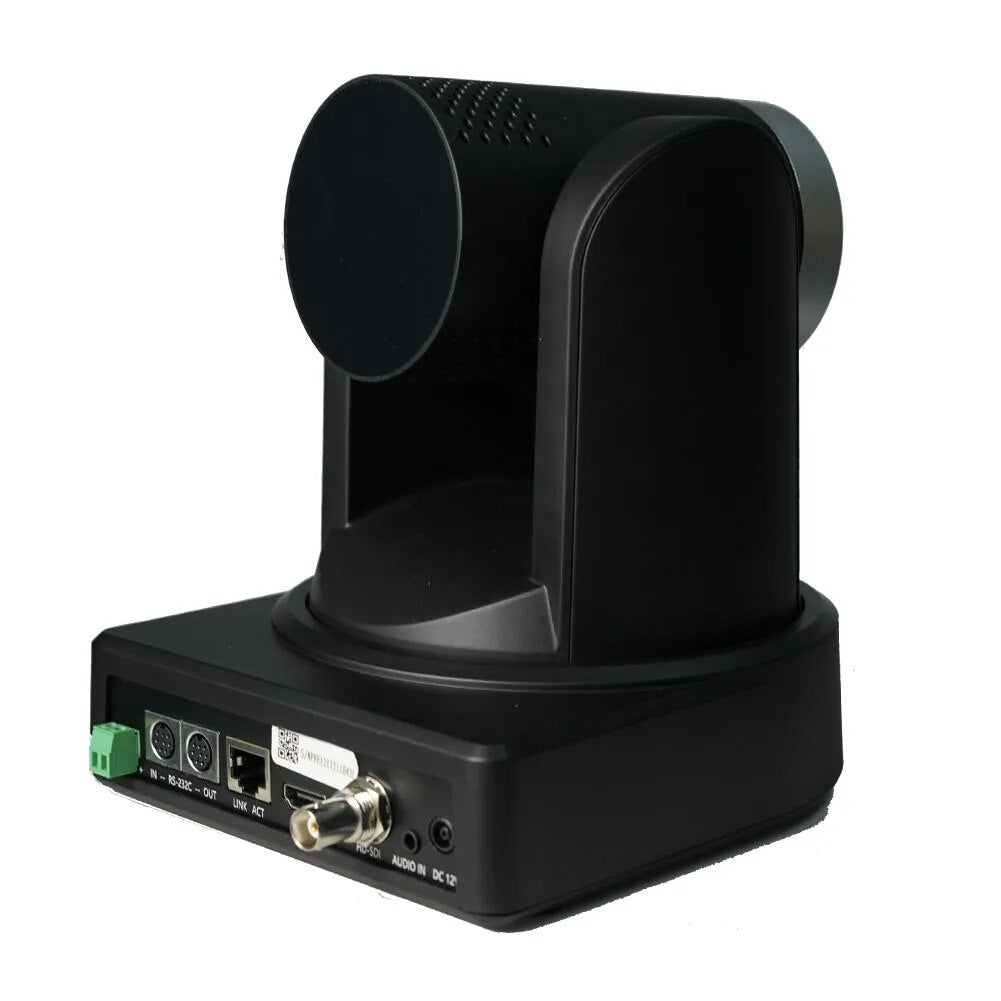

Provide USB3.0 interface. At the same time provide HDMI interface, CVBS port, IP port and audio port. Support 1080P60/50, 1080P30/25 and other high-definition video formats. Support 1080P60/50/30/25, 720P60/50/ and other high-definition video formats.
●RS-232C/RS485 (optional) remote control (VISCA protocol/Pelco-D/Pelco-P)
Using the RS-232C/RS485 (optional) interface, remote high-speed communication control of all camera settings and pan/tilt/zoom operations is possible. Through the RS-232 cascade interface, multiple cameras can be connected (VISCA protocol)
●Multiple address settings
Set the local address through the menu/VISCA serial command
● 255 position presets
255 positions can be preset through the serial port, including pan, tilt and zoom. Even when the camera is powered off, the preset data can be saved.
●Multi-function remote control
Equipped with an easy-to-operate remote control, in addition to basic settings, and control of pan, tilt, zoom, etc., you can also use the remote control to call up the menu to set the relevant parameters of the camera.
●Infrared remote control signal transparent transmission function
In addition to receiving its own dedicated remote control signal, it can also receive the infrared remote control signal of the user's video conferencing terminal, and upload it to the video conferencing terminal through the 8-pin mini DIN, replacing the infrared receiving port of the user's video conferencing terminal, so that the user terminal Can be placed in the background.
●Optional camera flip function
Structurally, the camera can be installed upside down, and the installation method can be changed through the OSD menu or by sending serial commands.
●OSD Chinese and English menu function
Rich OSD menu, can use remote control to control Chinese and English OSD menu
CHIP |
HIS3536DV100 |
SYSTEM |
Linux |
Max equipment |
999 |
Decoding |
h.265, h.264 |
RESOLUTION |
MAX 1080P for 1 channel:1920*1080@30fps |
PROTOCOL |
Onvif |
Joystick |
4D |
OUTPUT |
RS422(Reserved), RS232(Development port), RJ45 |
Accessories |
Knob, Silicone button |
Beep |
On/off |
SCREEN |
TFT LCD 800*480 |
Power consumption |
≤5W |
POWER |
DC12V-2A |
Work temperature |
-10℃~55℃ / 14°F~131°F |
Work humidity |
20%~80%frostless |
Storage temperature |
-10℃~60℃ / 14°F~140°F |
Storage humidity |
0~90%frostless |
Packing size |
340*268*140mm |
Product Introduction:
The network control keyboard with decoding function. It has strong
maneuverability and effectively solves the problem of inaccurate and
inconvenient mouse click control. High-end atmosphere, unique surface
hardening can effectively prevent scratching; 5 inch LCD screen display is
excellent, image decoding experience is better.
Supports the standard Onvif protocol, with good compatibility, strong
scalability, and easy operation. It only takes a few steps to achieve perfect
control of the network dome.
Features:

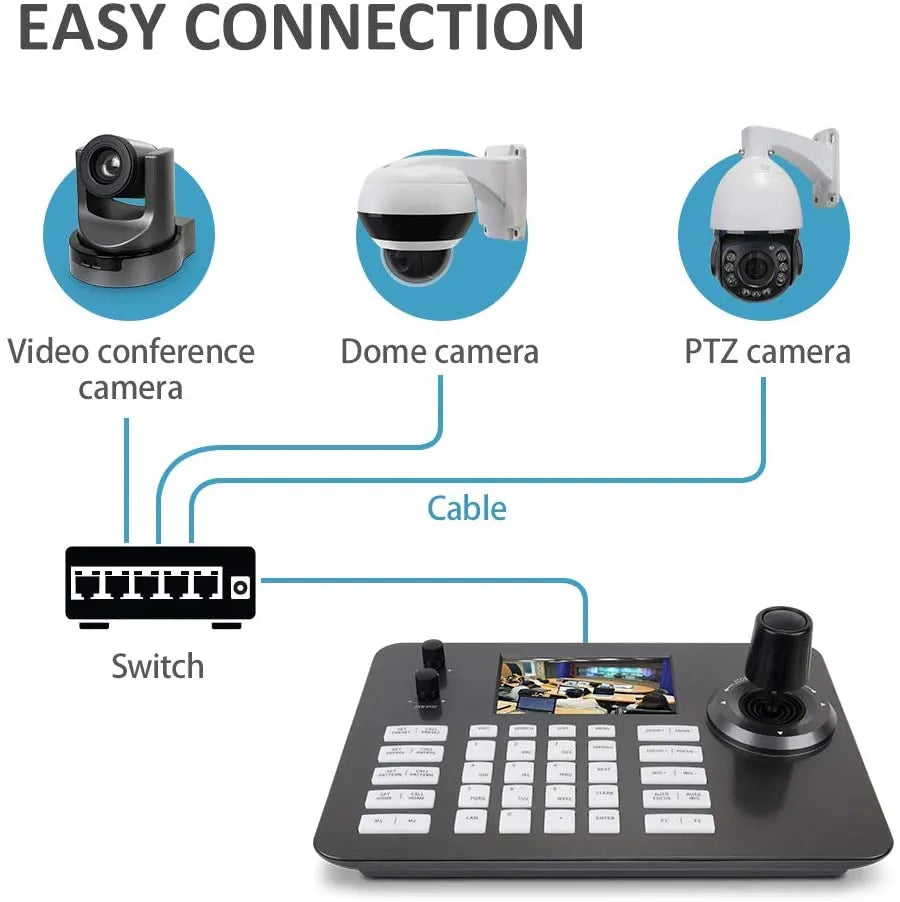

Support network control with independent IP address.
Support ONVIF
5 inch industrial LCD screen, resolution 800*480, image decoding, real-time monitoring.
Support 4D joystick control ptz function
Support preset patrol pattern and AB scan
Support IE web setting
Support custom function buttons, add shortcut function (customized)

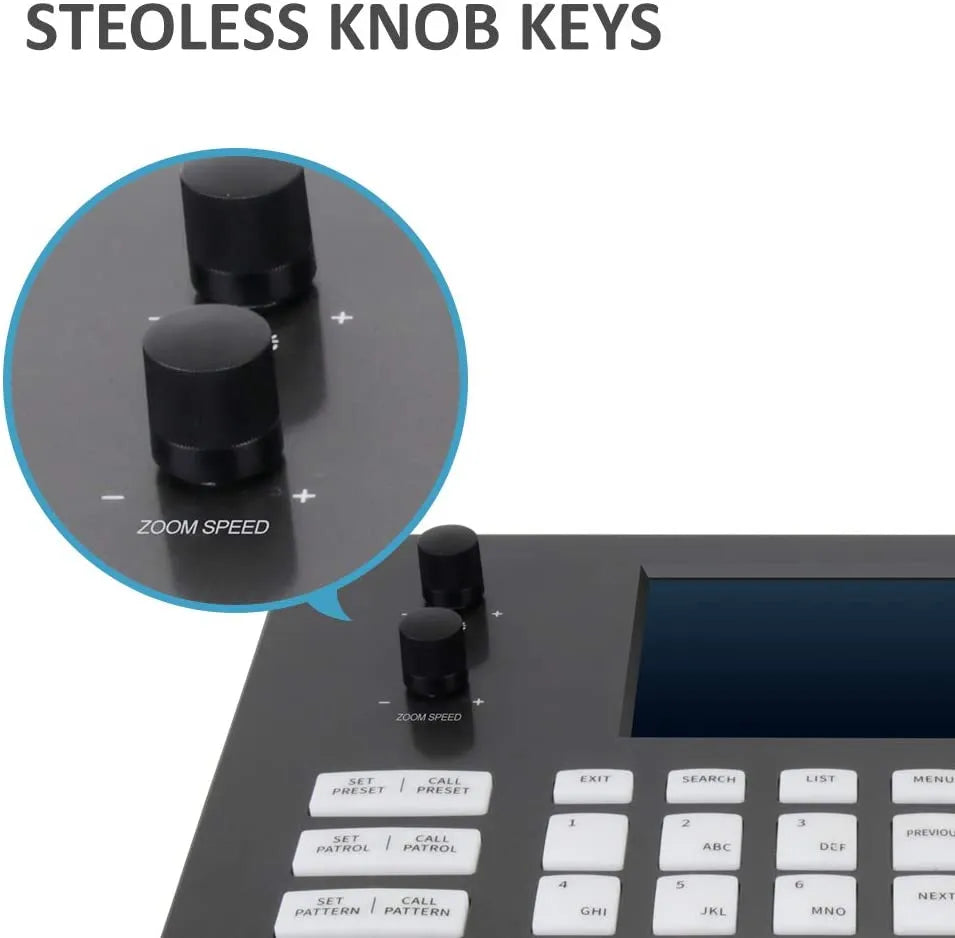

Support Knob for zoom and control speed

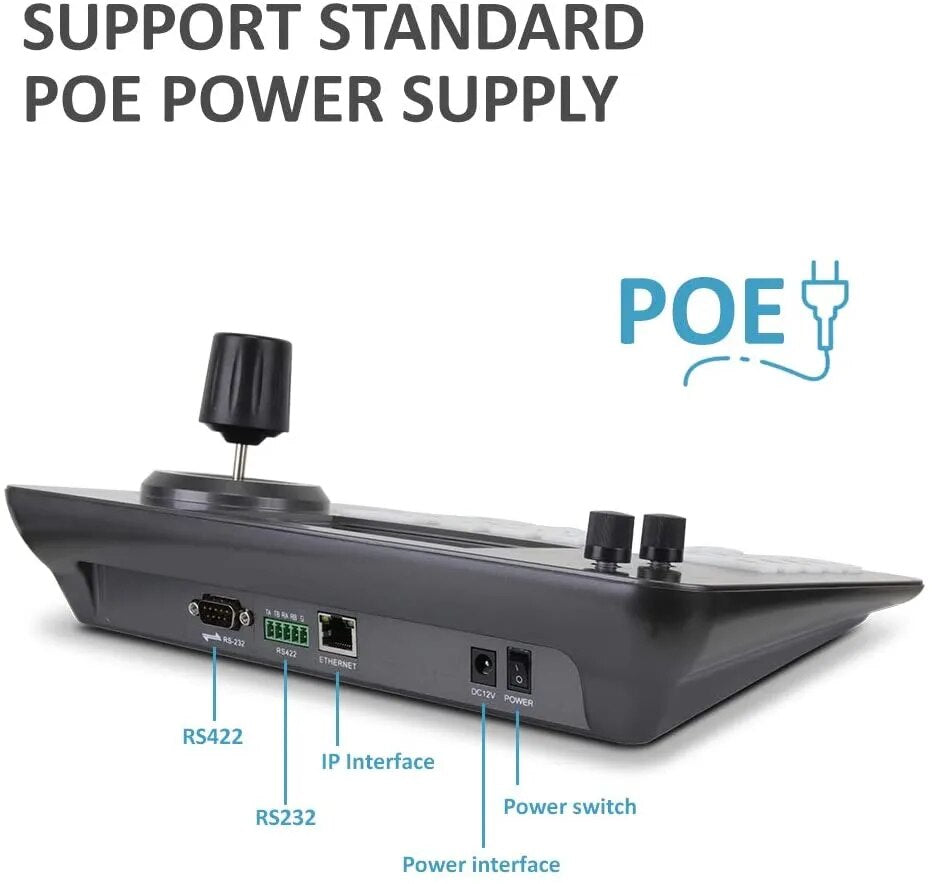

Support POE
